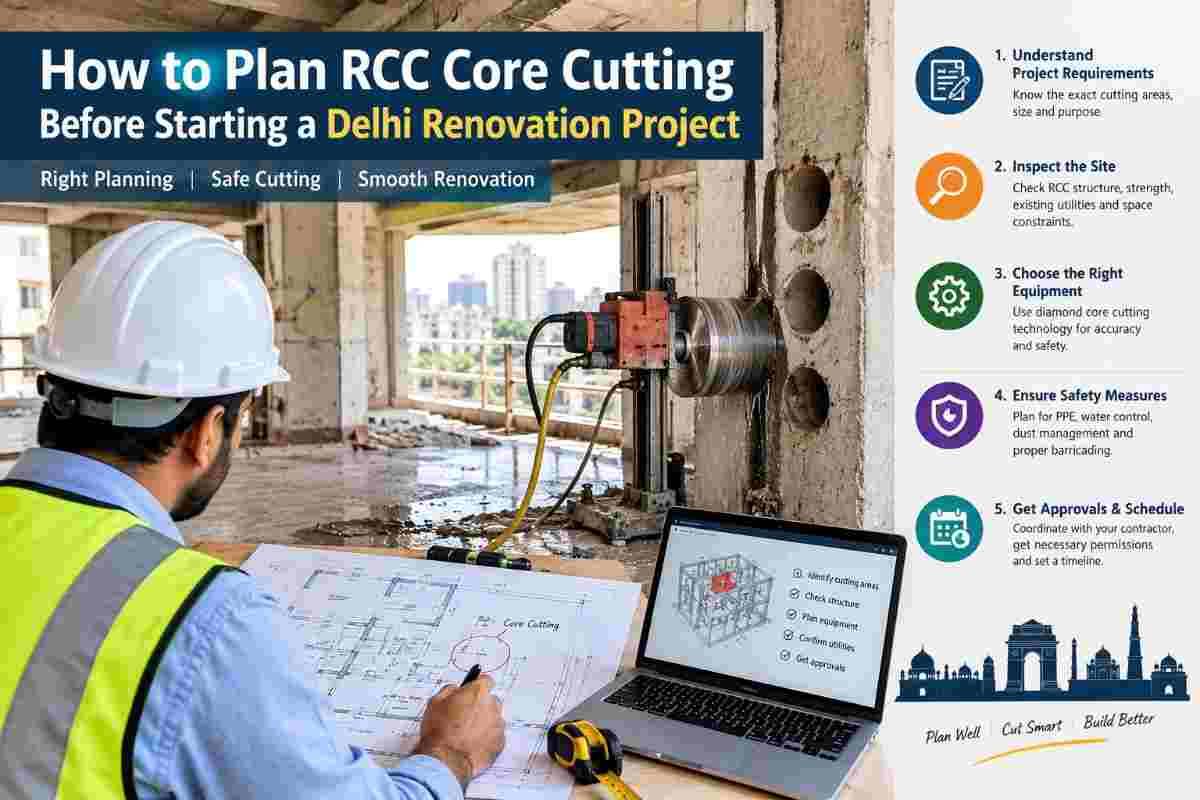

How to Plan RCC Core Cutting Before Starting a Delhi Renovation Project

Renovating a home, office or shop in Delhi often means changing what is already there: a new bathroom, a relocated kitchen, a split AC where none was planned, or a new staircase opening. Sooner or later, many of these plans meet the same obstacle: reinforced cement concrete (RCC). Slabs, beams, columns and walls cannot be changed with a hammer and chisel without risking cracks, vibration damage and even structural weakness.

This is where RCC core cutting comes in. It is the precise, controlled way to make holes in concrete, and when planned well, it keeps your renovation on schedule, within budget and structurally safe. When planned badly, it leads to damaged reinforcement, leaking slabs, arguments with neighbours and expensive rework.

• https://corecuttingindia.com/
• https://corecuttingindia.com/rate-calculator

This guide from CoreCuttingIndia.com walks you through how to plan RCC core cutting before you begin a renovation in Delhi, from the first site visit to the final cleanup.

What Is RCC Core Cutting and Why Does It Matter in Renovation?

RCC core cutting, also called core drilling, uses a hollow cylindrical drill bit with diamond segments on its edge. The bit spins at high speed, usually with water cooling, and cuts a clean, round hole through reinforced concrete. The solid cylinder of concrete left inside, called the core, is removed after cutting.

Compared with conventional breaking, core cutting offers clear advantages:

• Low vibration. This matters in Delhi’s dense residential colonies and apartment buildings, where hammering can crack plaster, tiles and neighbouring walls.
• Clean, accurate edges. Holes come out round, smooth and the exact diameter you need, so pipes and ducts fit snugly.
• Less dust and noise. Wet cutting controls dust, and the process is quieter than a heavy breaker.
• Reduced structural stress. A controlled cut disturbs far less of the surrounding concrete than demolition.

In renovation work, core cutting is used for plumbing and drainage lines, electrical conduits, AC refrigerant pipes, exhaust and ventilation ducts, chimney and kitchen hood outlets, rainwater pipes, cable routes and sometimes anchor bolt holes.

Step 1: Define Exactly What You Need Before Calling Anyone

The most common planning mistake is starting with the contractor instead of the design. Before you request quotes, prepare a simple list covering:

1. Purpose of each hole. Is it for a 4-inch soil pipe, a 2-inch waste line, an AC pipe or an exhaust duct?
2. Number of holes. Count every opening across rooms and floors.
3. Diameter. Match the hole to the pipe or duct, with a small allowance for sleeves or sealing.
4. Location. Mark positions on a floor plan, noting the distance from walls, beams and column edges.
5. Direction. Decide whether holes are vertical (through slabs) or horizontal (through walls and beams).
6. Depth. Note the thickness of the slab or wall. Residential slabs in Delhi commonly range from about 100 mm to 150 mm, but you should measure rather than assume.

Having this list ready lets any reputable core cutting provider give you an accurate estimate and avoid surprise charges later.

Step 2: Check the Structure First

Concrete looks solid, but what is inside it determines what you can safely cut. RCC contains steel reinforcement bars (rebar), and sometimes embedded conduits and post-tensioning cables in certain buildings.

Involve a structural engineer early. This is especially important if you plan to:

• cut through a beam or column,
• make a large opening, such as a staircase or lift shaft,
• place several holes close together in one slab,
• renovate an older building where original drawings may be missing.

A structural engineer can review drawings, advise on safe locations and recommend whether strengthening, such as extra reinforcement or steel framing around an opening, is needed.

Know the rules of thumb. Holes should generally avoid beams, column zones and slab edges. Small-diameter holes may sometimes be placed in beams only in specific low-stress zones and only with engineering approval. Cutting through main reinforcement without checking is a serious risk. Do not rely on a contractor’s guess.

Scan before you cut. For older buildings or crowded slabs, ask for a rebar and conduit scan using ground-penetrating radar or a rebar detector. The scan shows hidden steel, electrical conduits and pipes so the drill avoids them, and it costs far less than repairing a cut cable or damaged reinforcement.

Step 3: Understand Permissions and Society Rules in Delhi

Delhi has a mix of independent houses, builder floors, DDA flats, cooperative group housing societies and commercial complexes. The rules differ for each, so check before work starts.

• Resident Welfare Association (RWA) or society approval. Most societies require written permission for any structural or semi-structural work, and many specify working hours and noise limits.
• Builder floors and shared structures. If you share a slab or wall with neighbours, tell them in advance. Cutting a slab affects the flat below.
• Authority approvals. Structural alterations may need approval from the relevant local body or development authority, such as MCD or DDA, depending on the property type and scope. Verify the current rules for your property with the authority or a licensed architect rather than relying on assumption.
• Commercial and leased premises. Get the landlord’s written consent, and check the lease terms on alterations.

Keeping these approvals on file protects you if a dispute arises later.

Step 4: Choose the Right Core Cutting Method

Not all core cutting is the same. Matching the method to the job improves quality and speed.

Wet core cutting. This is the standard for most renovation work. Water cools the bit, suppresses dust and extends bit life. The drawback is slurry, which needs containment and cleanup, especially in finished interiors.

Dry core cutting. This is used where water would cause damage, such as near electrical installations or in lightly reinforced masonry. It generates dust and heat, so it is generally limited to specific situations.

Rig-mounted vs. handheld drills. Rig-mounted machines are fixed to the floor or wall with an anchor or vacuum base and give straight, accurate holes in thick RCC. Handheld machines suit small-diameter holes in softer material but are less stable in heavy concrete.

Wall saw and wire saw cutting. For large openings, such as doorways, windows or staircases, core cutting is usually combined with wall sawing or wire sawing. Cores are drilled at the corners and the remaining sections are cut with saws.

A professional contractor will recommend the method after inspecting the site. Be wary of anyone who promises one method for everything.

Step 5: Sequence Core Cutting Correctly in Your Renovation Schedule

Timing matters. Core cutting is a rough work stage task and should usually happen before finishing work begins. A sensible order looks like this:

1. Finalise design, layout and fixtures.
2. Get structural and society approvals.
3. Carry out scanning and marking.
4. Complete core cutting and breaking work.
5. Install sleeves, pipes and conduits.
6. Do waterproofing and sealing around penetrations.
7. Proceed to plastering, tiling, flooring and painting.

Cutting after tiles or false ceilings are installed means extra cleanup, risk of damage and more cost. Doing it too early, before design is final, leads to holes in the wrong place. Wrong holes are painful to fix in concrete.

Step 6: Mark Locations Carefully and Double-Check

Accurate marking prevents most core cutting errors. Use these habits:

• Mark the centre point and the outer diameter with a visible marker or chalk.
• Cross-check positions against the plumbing and electrical drawings.
• For vertical holes through slabs, confirm the position on the floor below so the pipe emerges where intended and does not hit a beam, a light point or a wardrobe.
• Have the person responsible for the design, whether a plumber, architect or interior designer, sign off the markings before drilling starts.

A few minutes of checking can save days of corrective work.

Step 7: Plan for Water, Power and Access

Core cutting equipment needs support at the site:

• Power supply. Rigs typically need a stable single-phase or three-phase connection, depending on the machine. Confirm what is available.
• Water supply. Wet cutting needs a steady water source.
• Slurry management. Plan how to collect and remove the slurry. Sealing floors, using wet vacuums and blocking drains prevents mess and clogged pipes.
• Access. Check lift and staircase access for machines, and confirm working hours with the society.
• Protection. Cover furniture, flooring and fittings. Lay plastic sheets and masking around the work area.

Raising these points beforehand keeps the contractor from stopping mid-job.

Step 8: Safety and Quality Checks

Safety planning protects workers, residents and the building.

• Use trained operators with proper experience in RCC, not general labourers.
• Make sure workers wear protective equipment, including gloves, goggles, ear protection and safety shoes.
• Isolate electrical supply near the work area, especially where scanning shows conduits.
• Barricade the area below when cutting through slabs, because the core piece can fall if not supported or handled correctly.
• Confirm that the contractor secures the core as it is cut through, so it does not drop onto people or property.

After cutting, inspect the holes for clean edges, correct diameter and alignment, and look for any unexpected cracks around the opening.

Step 9: Finish the Penetrations Properly

Core cutting is only half the job. What you do after cutting decides whether the area stays sound.

• Sleeves. Fit pipe sleeves where needed so pipes can move and be replaced later.
• Sealing and grouting. Use non-shrink grout or appropriate sealants to fill the gap between pipe and concrete.
• Waterproofing. For wet areas such as bathrooms and kitchens, seal around the penetration and extend waterproofing as needed. Leaks through slab openings are among the most common long-term problems in Delhi renovations.
• Fire stopping. In commercial buildings, penetrations through fire-rated walls and slabs may need fire-rated sealants.

Estimating Core Cutting Cost and Time in Delhi

Pricing depends on several variables, so quoted rates vary:

• Hole diameter. Larger holes cost more per hole.
• Depth. Thicker slabs and walls take longer.
• Reinforcement density. Heavily reinforced concrete wears bits faster.
• Quantity. Many holes in a single visit usually reduce the per-hole cost.
• Access and height. Difficult locations, high ceilings or restricted access raise labour effort.
• Method. Wall sawing or wire sawing for large openings costs differently from standard drilling.

Ask for a written quotation that clearly states diameter, depth, rate per hole or per running measurement, taxes and any extra charges for scanning, water and slurry cleanup. Small jobs can often be done within a few hours, while larger renovations with multiple floors may take several days. Share your complete list upfront for a realistic schedule.

How to Choose a Core Cutting Contractor in Delhi

Look for these signs of a dependable provider:

• Experience with RCC work in residential and commercial renovations.
• Modern diamond core drilling equipment in good condition.
• Willingness to visit the site and explain the method rather than quote blindly.
• Clear, itemised pricing.
• Trained operators and visible safety practices.
• References or past project photos.
• Readiness to coordinate with your architect, engineer and society.

Teams like those at CoreCuttingIndia.com can help you plan the work, from site assessment to cutting and cleanup, so the process fits your renovation timeline.

Common Mistakes to Avoid

1. Cutting before finalising the design.
2. Skipping structural advice for beams and columns.
3. Ignoring society rules and neighbours.
4. Not scanning for rebar and conduits in older buildings.
5. Choosing the cheapest bidder without checking equipment and experience.
6. Forgetting waterproofing and sealing afterwards.
7. Failing to protect finished areas from slurry and dust.

Frequently Asked Questions

Is core cutting safe for RCC slabs and walls?
Yes, when planned and done properly. Core cutting is considered one of the safest ways to make openings in concrete because it produces little vibration. Safety still depends on checking the structure, avoiding critical reinforcement and using trained operators.

Can you core cut through a beam or column?
It is possible only in limited cases and only with a structural engineer’s approval. Beams and columns carry major loads, so random cutting can weaken the structure.

How much does RCC core cutting cost in Delhi?
Cost varies by diameter, depth, number of holes, reinforcement and site access. Request a written itemised quote after a site visit.

Do I need permission for core cutting in a Delhi apartment?
Generally you need at least your society or RWA’s consent, and sometimes more for structural changes. Check your property type and rules before starting.

How long does core cutting take?
A single small hole can take under an hour, while many holes or large openings can take several days. Access, slab thickness and reinforcement affect timing.

Is core cutting messy?
Wet cutting creates slurry, but a good contractor contains it with sealing, vacuums and protective sheets.

When should core cutting be done in a renovation?
During the rough work stage, after design is finalised and before plastering, tiling and painting.

Final Thoughts

RCC core cutting is a small line item in a renovation budget, but it carries big consequences. A well-placed, cleanly cut hole means smooth plumbing, neat AC installation and a structure that stays sound for decades. A poorly planned one can cause leaks, cracks and costly repairs.

Start with a clear list of your requirements, get structural advice, secure the necessary permissions, scan where needed, schedule the work early in the renovation sequence, and finish every opening with proper sealing. Do that, and your Delhi renovation will move forward with fewer surprises.
