Walk into almost any Delhi home built in the last twenty years and you will find a familiar problem: a bathroom with no exhaust, a kitchen that traps smoke and heat, a basement that smells damp, or a bedroom that stays stuffy through the summer. Reinforced cement concrete (RCC) construction is strong and durable, but it is also solid, and a wall without openings does not breathe.
Adding a ventilation opening to an RCC wall is entirely possible, but it is not a job for a hammer and chisel. Done poorly, it can crack the wall, cut through reinforcement, weaken the structure, or cause water seepage. Done properly, it improves air quality, reduces humidity and mould, and makes your home more comfortable without compromising safety.
This guide, brought to you by Core Cutting India, explains how ventilation openings in RCC walls are planned and cut, what permissions and checks apply in Delhi, which methods are best, and how to choose a contractor you can trust.
Why Ventilation Openings Matter in Delhi Homes
Delhi’s climate is demanding. Summers are hot, monsoons are humid, winters bring cold and smog, and indoor air often becomes more polluted than the air outside when rooms are sealed up. Poor ventilation leads to several common problems:
- Moisture and mould: Bathrooms, kitchens and basements without airflow develop damp patches, peeling paint and black mould.
- Cooking fumes and odours: Closed kitchens trap oil vapour and smoke, which settle on walls and ceilings.
- Heat build-up: Poorly ventilated rooms, especially top-floor rooms and barsaatis, can become uncomfortably hot.
- Stale indoor air: Carbon dioxide, dust and volatile compounds from paints, furniture and cleaning products accumulate.
- Health concerns: Damp and stale air can aggravate asthma, allergies and respiratory discomfort.
Many Delhi properties, including builder floors, DDA flats, basements, shops and offices, were designed with limited openings to maximise usable area or because of tight plots with shared walls. That is why retrofitting ventilation is such a common request.
Common Types of Ventilation Openings in RCC Walls
The right opening depends on what you need to ventilate. Typical examples include:
- Exhaust fan openings: Usually circular holes of about 150 mm to 300 mm for bathrooms, toilets and small kitchens.
- Kitchen chimney duct holes: Round openings, commonly 150 mm to 200 mm, to vent a chimney to the outside.
- Window or ventilator openings: Rectangular cut-outs for louvres, ventilators or small windows.
- Basement ventilation openings: Larger openings or multiple core holes for fresh-air intake and exhaust.
- Ducting and HVAC openings: Openings for ventilation ducts, fresh air units and ventilation shafts in commercial spaces.
- AC and utility pipe holes: Smaller core holes for refrigerant pipes, drain lines and cables.
Round openings are made with diamond core drilling. Rectangular or large openings are made with wall saw cutting, wire sawing or a combination of both.
The Most Important Step: Structural Safety First
Before anyone touches the wall, one question must be answered: is this wall structural?
In RCC buildings, walls may be load-bearing walls, shear walls, retaining walls, or non-structural partition or infill walls. Cutting an opening in a shear wall or a retaining wall is a serious structural intervention. Even a modest opening can interrupt reinforcement bars, concentrate stress at the corners of the opening, and reduce the wall’s ability to resist loads.
This matters especially in Delhi, which lies in a high seismic zone (Zone IV under Indian standards). Walls that contribute to a building’s earthquake resistance should never be altered without professional assessment.
What a structural engineer will check
- Whether the wall is load-bearing, a shear wall or a simple infill wall
- The wall thickness, concrete grade and reinforcement layout
- The position of the opening relative to beams, columns, slabs and corners
- Whether additional framing, lintels or reinforcement are needed around the opening
- The impact on the overall stability of the building
As a rule, never cut into a wall just because it “looks thick” or a neighbour did it. A short consultation with a qualified structural engineer costs very little compared with the cost of repairing a damaged structure.
Permissions and Approvals in Delhi
Rules vary depending on your property type, so check these before you begin:
- Independent houses and builder floors: Minor non-structural openings generally do not need fresh sanction, but any structural alteration may require approval from the local municipal authority. Check the current building bye-laws and consult your architect.
- DDA, CGHS and society flats: You often need permission from the DDA, the housing society or the resident welfare association (RWA). Many societies prohibit changes to external façades or structural walls.
- Leased or rented premises: Written consent from the owner is essential.
- Commercial buildings: Alterations may require approval from the building management, the landlord and, in some cases, fire and safety authorities.
- Basements: Basement use and ventilation are regulated more strictly, so confirm the requirements before modifying walls.
Ventilation itself is also governed by building norms. The National Building Code of India and local building bye-laws set minimum requirements for openings in habitable rooms, kitchens, bathrooms and basements. Your architect can confirm the minimum opening size for your situation.
Why Traditional Breaking Methods Are a Bad Idea
Many owners ask a local mason to simply break the wall with a hammer, chisel or electric breaker. This is risky for several reasons:
- Uncontrolled cracking: Impact vibrations can send cracks far beyond the intended opening.
- Damaged reinforcement: Rebars may be bent, cut at the wrong place or left exposed and prone to corrosion.
- Rough edges: Openings are uneven, requiring heavy plastering and rework.
- Noise, dust and debris: Breaking creates heavy dust and noise that disturb neighbours and may violate local norms.
- Damage to adjoining areas: Vibrations can loosen tiles, cause cracks in nearby walls and affect plumbing or electrical lines.
Modern diamond cutting avoids most of these problems.
Modern Methods for Cutting Ventilation Openings in RCC
1. Diamond Core Drilling

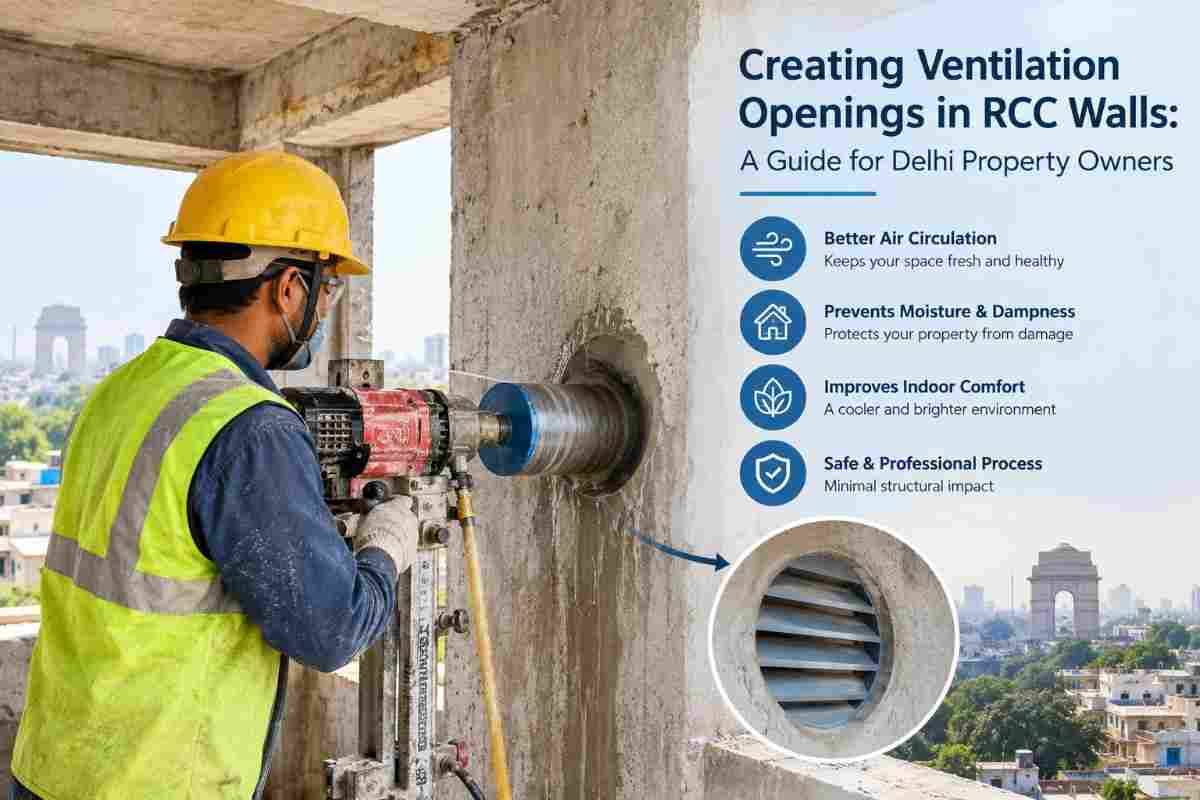

Core drilling uses a hollow cylindrical bit with diamond segments to cut a clean, round hole through concrete. It is the preferred method for exhaust fans, chimney ducts, pipes and small ventilation holes.
Advantages:
- Smooth, precise, perfectly round holes
- Minimal vibration and little damage to surrounding concrete
- Water cooling keeps dust under control
- A retrievable concrete core, which shows the wall’s actual composition
- Fast completion, often within a few hours for small jobs
2. Wall Saw Cutting
For rectangular openings such as ventilators, windows and doors, a track-mounted wall saw with a diamond blade cuts straight, clean lines through thick RCC.
Advantages:
- Accurate, straight edges and sharp corners
- Suitable for thick and heavily reinforced walls
- Far less noise and vibration than breaking
- Cut sections can be removed in manageable pieces
3. Wire Saw Cutting
For very thick walls, large openings or hard-to-reach locations, a diamond wire saw pulls a wire loop through the concrete. It is typically used in industrial or heavy structural work rather than ordinary homes.
4. Hand-Held Ring Saw and Chain Saw Cutting
Used for smaller cuts, corners and tight spaces where larger machines cannot be positioned.
Step-by-Step: How a Professional RCC Ventilation Opening Is Made
A well-run job follows a clear process:
- Site inspection and assessment: The team checks the wall thickness, access, utilities and surroundings.
- Structural clearance: For any wall that may be structural, an engineer reviews and approves the opening size and location.
- Scanning and marking: Where possible, the wall is scanned for rebar, conduits and pipes. The exact opening is then marked with chalk or paint.
- Protection of the area: Floors, furniture and nearby surfaces are covered. Water and slurry containment are arranged.
- Cutting: Core drilling or wall sawing is carried out with water cooling to control dust and heat.
- Removal of the cut piece: The concrete core or section is safely taken out, often in sections for larger openings.
- Finishing: Edges are cleaned and, if needed, lined with a PVC or metal sleeve, frame or lintel.
- Fitting and sealing: Exhaust fans, louvres or ducts are installed and the gaps are sealed against water and pests.
- Clean-up: Slurry and debris are removed, leaving the space tidy.
Design Tips for Effective Ventilation
Cutting the opening is only half the job. To make it actually work:
- Place openings high: Warm, stale air rises, so exhaust openings near the ceiling are more effective.
- Create cross ventilation: Pair an inlet on one side with an outlet on the opposite or adjacent wall to encourage airflow.
- Size it correctly: An exhaust fan opening should match the fan size, while bathrooms and kitchens need enough capacity for the room volume.
- Slope slightly outward: Openings through external walls should slope slightly downward toward the outside to keep rainwater from entering.
- Use sleeves and covers: Fit PVC sleeves, louvres or weather hoods to protect against rain, birds and insects.
- Mind the neighbours: Make sure the outlet does not discharge directly into a neighbour’s window or shared passage.
- Think about fire safety: In commercial and multi-storey buildings, ducts and openings may need fire dampers or compliance with fire norms.
Special Considerations for Basements
Basements in Delhi need extra attention because they are more prone to dampness, poor airflow and, in some areas, a high water table. When adding ventilation to a basement:
- Combine fresh air inlets and mechanical exhaust rather than relying on natural airflow alone.
- Ensure openings above ground level are waterproofed and protected from rainwater and drainage backflow.
- Use proper sleeves, flanges and waterproofing compounds where pipes or ducts pass through retaining walls.
- Seek a structural engineer’s input, since basement walls resist soil and water pressure.
Cost Factors: What Affects Pricing
Costs vary from job to job, and a reputable contractor will quote after inspecting the site. The main factors are:
- Opening size and shape: Larger or rectangular cuts cost more than small round holes.
- Wall thickness and concrete grade: Thicker and harder RCC takes longer and uses more diamond tooling.
- Rebar density: Heavily reinforced walls are slower to cut.
- Access and height: Cutting on upper floors, in tight spaces or at awkward heights requires more effort.
- Number of openings: Multiple cuts in one visit are often more economical.
- Finishing work: Sleeves, lintels, plastering and fitting add to the total.
- Dust and water management: Enclosed or occupied spaces may need extra protection.
Always request a written estimate and confirm what is included.
How to Choose a Reliable RCC Cutting Contractor in Delhi
Not every service provider has the equipment or experience for structural concrete. Look for:
- Proper diamond cutting equipment, including core drill machines and wall saws, rather than hammer-based methods
- Experience with RCC, not just brick walls
- Willingness to coordinate with your structural engineer
- Trained, supervised operators and sound safety practices
- Clean-site methods, such as water cooling and slurry control
- Transparent quotes with no vague add-ons
- References and past work you can verify
At Core Cutting India, we specialise in precision concrete cutting using modern diamond tools, helping homeowners, builders and commercial clients create accurate, clean openings with minimal disruption.
Common Mistakes to Avoid
- Cutting without checking whether the wall is structural
- Skipping society, RWA or authority permissions
- Using hammers or breakers on RCC
- Ignoring hidden electrical conduits and plumbing lines
- Choosing opening sizes without considering fan, duct or louvre specifications
- Leaving gaps unsealed, which allows water leakage and pests
- Hiring the cheapest operator without verifying equipment or experience
Frequently Asked Questions (People Also Ask)
Note: You left the Related Keywords and People Also Ask fields blank in your request, so I have used commonly searched questions below. Replace or add to them with your own research data if you have it.
Can I make a ventilation hole in an RCC wall?
Yes, in most cases you can, provided the wall is assessed and the opening is planned and cut correctly. Small holes in non-structural walls are straightforward. Openings in load-bearing or shear walls need a structural engineer’s approval.
How is a hole cut in a concrete wall?
Professionals use diamond core drilling for round holes and wall saw cutting for rectangular openings. Both methods use diamond tools with water cooling for a clean, accurate and low-vibration cut.
Is core cutting safe for RCC walls?
Yes, when performed by trained operators with the right equipment and after proper structural checks. Core cutting causes far less vibration and cracking than breaking with a hammer or chisel.
How big a hole can I make in an RCC wall?
There is no universal answer. It depends on the wall’s role in the structure, its thickness, reinforcement and location. A structural engineer should determine the safe size and whether reinforcement around the opening is required.
Do I need permission to cut an opening in an RCC wall in Delhi?
It depends on the property. Society flats, DDA properties and commercial buildings usually require approval from the society, RWA or authority, and structural alterations may need formal sanction. Check with your architect and the relevant body before proceeding.
How long does it take to cut a ventilation opening?
A small core hole can often be completed within an hour or two. Larger rectangular openings in thick walls may take a few hours to a full day, depending on size, access and reinforcement.
Will core cutting create a lot of dust and noise?
Water-cooled diamond cutting greatly reduces dust and is much quieter than breaking. Some noise and slurry are unavoidable, but a professional team will contain and clean them.
How do I ventilate a room that has no windows?
Options include installing an exhaust fan through an external wall, adding a ventilator opening, using ducted mechanical ventilation or installing a fresh air unit. The best choice depends on the room’s location and the building’s structure.
What size hole is needed for an exhaust fan?
It depends on the fan. Common bathroom and kitchen exhaust fans need roughly 150 mm to 300 mm openings. Always check the fan’s cut-out specification before cutting.
Conclusion
A well-planned ventilation opening can transform a stuffy, damp or smoky room into a healthier, more comfortable space. In Delhi’s climate and building conditions, good airflow is not a luxury. It protects your health, your furnishings and your property.
But RCC is not forgiving. The key steps are to confirm the wall’s structural role, obtain the right permissions, use proper diamond cutting methods and finish the opening carefully. Cutting corners, literally or figuratively, can cost far more than doing it right the first time.
If you are planning a ventilation opening, exhaust fan hole, duct passage or any concrete cutting work in Delhi NCR, the team at Core Cutting India can help you with precise, clean and safe results. Visit corecuttingindia.com to learn more or request a site inspection and quote.
